PPG preprocessing: `ppg_preproc.ipynb`#

This step-by-step tutorial will walk you through how to use the Jupyter notebook for preprocessing raw PPG data, developed as part of the Brain-Body Analysis Special Interest Group (BBSIG). You can find this pipeline under the name: ppg_preproc.ipynb.

Never used a Jupyter notebook before?

If you have never used a Jupyter notebook before, visit our setup instructions in the FAQs. Especially if you are planning to perform the manual PPG peak correction, we recommend following the instructions to run this pipeline locally in your IDE of choice (e.g., VS Code, PyCharm).

Before starting: multiple participants or one at a time?

This PPG pre-processing pipeline is designed to run over multiple participants at once. If you do not want to manually check and edit the peaks locations (see Sect. 5), each participant will be pre-processed and their summary files will be saved in the respective folder. Just make sure that the optional settings variable manual_correct is set to False.

However, if you plan to use the interactive visualization for the manual correction of PPG systolic peaks (via Systole’s Editor), we recommend you run the PPG preprocessing pipeline on one participant (or very few participants) at a time. The participant ID(s) are included in Sect. 1 during data import under the variable participant_ids, so you can specify the ID(s) of the participants you want to pre-process and then proceed to run the pipeline until Sect. 5. At that point, you can further specify which participant ID to manually correct under participants_manual, proceed with its manual correction and save it, before repeating this section again with a different participant ID. When you are done with manual correction, run the last section (Sect. 6) for data output of all participants.

If you leave the participant_ids list empty, it will run on all participants in the specified working directory folder.

############## Define path for PPG data ##############

# Set participant IDs - if empty, it will process all participants in the directory
participant_ids = []  # Adjust as needed, or set to an empty list `[]` to process all participants

Pipeline structure#

The following steps are included in the PPG preprocessing pipeline:

Data import and conversion: import the BIDS-compliant _physio.tsv.gz and _physio.json files containing the raw PPG signal and its metadata, then convert them into appropriate formats for later processing stages.
(Optional) PPG normalization, filtering, & clipping artifact correction: normalize the signal between 1 and -1 (Sect. 2a), clean the PPG signal using NeuroKit2’s signal_clean() function (0.5 Hz high-pass and 8Hz low-pass 3rd order Butterworth filters; see Sect. 2b). Automatically handles clipping artifacts with Systole’s find_clipping() to identify the clipping threshold and interpolate_clipping() to interpolate the missing clipped peaks (or troughs); see Sect. 2c.
PPG peaks detection: custom function to detect PPG systolic peaks using NeuroKit2’s nk.ppg_peaks() with the 'elgendi' method. Optionally, two complementary automated artifact correction methods can be selected (i.e. NeuroKit2’s internal correction and/or Systole's correct_peaks()). Saves uncorrected (and automatically corrected) peak indices, as well as metadata about corrected artifacts (if applicable).
(Optional) interactive visualization: plot an interactive visualization of ECG signal with systolic peaks and instantaneous heart rate using Systole’s plot_raw() function, or produce interactive sub-space plots to identify artifacts (ectopic beats, long/short intervals) using Systole’s plot_subspaces() function. Plots can either be shown inside the notebook (if plot_within_notebook is set to True) or opened in a browser as HTML files.
Manual peaks correction: manually identify and correct mis-detected PPG peaks and label bad segments using Systole’s Editor(saves output to manual-correction.json in the derivatives folder). It is recommended to run this section one participant at a time.
Data output: export the _ppg-cleaned.tsv.gz (optional) and _ppg-preproc.json files for each subject in BIDS-compliant format to /derivatives/ecg-preproc/sub-xx/. Additionally, an _hr-bpm-{correction_type}.tsv.gz file can be saved with interpolated HR (in bpm).

Settings: optional pipeline steps#

This section defines a series of variables that can be set to True to include the corresponding pipeline steps:

Variable Name	Function
`ppg_normalize` (bool)	PPG normalization (Sect. 2a): normalizes the raw PPG signal between 1 and -1.
`ppg_filter` (bool)	PPG filtering (Sect. 2b): cleans the PPG signal by applying 0.5-8 Hz band-pass 3rd order Butterworth filters.
`clip_artifacts_correct` (bool)	PPG clipping artifacts detection and interpolation (Sect. 2c): performs automated clipping artifact correction using Systole's `find_clipping()` to identify the clipping threshold and `interpolate_clipping()` to interpolate the missing clipped peaks (or troughs).
`correct_artifacts_nk` (bool)	PPG automated artifact correction by NeuroKit2 (Sect. 3): performs automated artifact correction of the PPG systolic peaks using NeuroKit2's `ppg_peaks()` function.
`correct_artifacts_sys` (bool) `iterations = 1` (numeric)	PPG automated artifact correction by Systole (Sect. 3): performs automated artifact correction of the PPG systolic peaks using Systole's `correct_peaks()` and stores details regarding each type of artifact from RR intervals ("ectopic", "short", "long", "missed", "extra"). The number of detection-correction iterations can be set using the `iterations` variable (defaults to `1`).
`interactive_ppg_plot` (bool) `participant_plots = []` (list)	Interactive plots of PPG signal with peaks or sub-spaces with artifacts (Sect. 4): displays an interactive visualization of the continuous PPG signal with systolic peaks and instantaneous HR, as well as interactive sub-spaces plots to identify artifacts. The participant IDs to-be-plotted can be specified in the list `participant_plots = []`; if left empty, all participants plots will be shown.
`manual_correct` (bool) `participant_manual = []` (list)	(Optional) manual correction of PPG systolic peaks (Sect. 5): activates UI for manual correction of extra peaks, missed peaks and/or falsely detected peaks, using Systole's `Editor`. The UI can also be used to annotate bad segments. Saves a JSON file with the corrected peaks and bad segments. It is recommended to run this section one participant at a time, by specifying the desired ID under `participant_manual = []` each time.
`hr_interpol` (bool)	Save HR interpolation (Sect. 6): exports interpolated heart rate (HR) values in BPM, using Systole's `utils.heart_rate()`, as TSV file with same sampling rate as original recording.

1. Data import and conversion#

This section imports the physiological data and metadata from the _physio.tsv.gz and sidecar _physio.json files and extracts the raw PPG data as a numpy array (ppg_raw). This array is added to a dictionary (ppg_dict) where the data is organized by participant. In detail:

Define participants and BIDS file paths: first, the user specifies the participant ID(s) in the participant_ids list. If participant_ids is empty, the script automatically includes all participants in the main directory of BIDS-compliant raw data storage (wd). The user must specify the root directory of BIDS-compliant raw data storage (wd), as well as the mandatory (i.e., task label, datatype) and optional (i.e. session label) BIDS entities (in the format task-<label>, <datatype> and ses-<label>, respectively). These will be used to create a base filename according to BIDS conventions (e.g., sub-<ID>{_ses-<label>}_task-<label>) and a base BIDS directory including subject, session (optional) and datatype (e.g., 'sub-<ID>/[ses-<label>/]<datatype>/').
Check for _physio.tsv.gz and _physio.json file existence: ensures the raw PPG signal and metadata exist for each participant. If either file is missing, the participant is skipped with a warning message.
Extract and parse metadata: read the JSON file to extract key information, including sampling frequency (saved as sfreq) and column names used to recognize the PPG data column when reading the TSV.GZ file (expects a column named ppg). Additionally reads and decompresses the TSV.GZ file into a pandas DataFrame (physio_df) using the extracted column names.
Organize PPG data into a dictionary: the following data from each participant is stored in a dictionary (ppg_dict) with the participant IDs (sub-<label>) as keys:
- bids_base_filename: the base PPG filename in BIDS format.
- bids_base_directory: the base BIDS-compliant folder structure with or without session entity, i.e., 'sub-<ID>/{ses-<label>}/<datatype>/'.
- ppg_raw: the raw PPG signal stored as an array.
- sfreq: the sampling frequency of the PPG recording.
Define the derivatives path for PPG preprocessed data storage: defines and creates the directory for storing the PPG preprocessed data, i.e., derivatives/ppg-preproc/sub-<ID>/....

Please keep in mind that data import parameters must be adapted if your data or folder structure are not BIDS-compliant (check how in the Organize your BIDS folders section).

Which BIDS entities should be specified for data import?

This is what the setup of mandatory and optional BIDS entities could look like when loading the physio data files for two participants, sub-201 and sub-202, called sub-<ID>_ses-01_task-BBSIG_physio.tsv.gz, with one session each (ses-01) and datatype beh, stored in the following BIDS-compliant raw data structure C:\YourBIDSFolder\sub-<ID>\ses-01\beh\…. If participant_ids = [], all participant IDs in the raw data folder would be included instead.

# Set participant IDs
# If set to an empty list '[]', it will process all participants in the directory
participant_ids = ['201', '202']  # Adjust as needed: each item should correspond to <ID> of 'sub-<ID>' in BIDS format; otherwise, leave empty for all

# Specify the main directory of data storage (containing BIDS-compliant raw data)
wd = r'C:\YourBIDSFolder'  # change with the directory of data storage

# Mandatory: BIDS entities (task, datatype)
task_name = 'BBSIG'       # <label> of 'task-<label>' used for file naming in BIDS format
datatype_name = 'beh'     # datatype used for corresponding directory in BIDS format (e.g., 'beh', 'eeg', 'func')
physio_name = 'physio'    # physio data specification in BIDS format

# Optional: BIDS entities (session)
session_idx = '01'     # <label> of 'ses-<label>' in BIDS format, if available; otherwise, set to None

Moreover, if you have additional BIDS entities (e.g., 'run-<label>' or 'recording-<label>'), you can easily add them by changing the bids_base_fname variable, as this will only impact file naming but not folder structure. This base BIDS filename will be inherited by all data import and export functions. You can read more about mandatory and optional entities in our short BIDS glossary.

# If you have additional BIDS entities (e.g., 'run' or 'recording') you can change the bids_base_fname variable accordingly
bids_base_fname = f'{subj_id}_ses-{session_idx}_task-{task_name}_run-{run_idx}_recording-{rec_name}'

The main output from this section is a dictionary, ppg_dict, which includes the raw PPG signal (ppg_raw) and the sampling frequency sfreq for each participant (n.b., this is especially important if different sampling frequencies were used for different participants). This dictionary is the basis of our PPG preprocessing.

Example structure of ppg_dict:

{
    'sub-201': {
        'bids_base_filename': 'sub-201_ses-01_task-BBSIG',
        'bids_base_directory': 'sub-201/ses-01/beh/',
        'ppg_raw': array([-107070.39, -106860.4 , ..., -111120.33, -111090.33]),
        'sfreq': 1000
    },
    'sub-202': {
        'bids_base_filename': 'sub-202_ses-01_task-BBSIG',
        'bids_base_directory': 'sub-202/ses-01/beh/',
        'ppg_raw': array([-112780.31, -112830.31, ..., -107320.39, -107370.39]),
        'sfreq': 500
    },
    ...
}

2. (Optional) PPG normalization, filtering & clipping artifact correction#

This section includes a series of optional preprocessing steps for PPG signal correction and cleaning. In detail:

Warning

If none of these preprocessing steps in Sect. 2 are enabled, all the subsequent sections will rely on the raw PPG signal (ppg_raw) instead. Otherwise, subsequent sections will be executed in order of preference using the ppg_clipping_clean, ppg_filt and ppg_norm signal.

2a. PPG normalization#

If the variable ppg_normalize is set to True in the optional pipeline steps (see settings above - defaults to True), this part of the code will:

Define a custom function to normalize the PPG signal between -1 and 1.
Perform the normalization for all participants in ppg_dict and store the normalized PPG signal under the ppg_norm key.

The PPG normalization step ensures consistency and removes baseline fluctuations, particularly useful for visualization and comparison across participants.

# Define custom function to normalize the PPG signal between -1 and 1
def normalize_ppg_signal(ppg_signal):

    # Get min and max values from PPG signal
    ppg_min = np.min(ppg_signal)
    ppg_max = np.max(ppg_signal)

    # Perform the normalization between -1 and 1
    ppg_norm = 2 * ((ppg_signal - ppg_min) / (ppg_max - ppg_min)) - 1

    return ppg_norm

Example of the updated ppg_dict for a given participant after running this normalization step:

{'sub-201': {
    'bids_base_filename': 'sub-201_ses-01_task-BBSIG',
    'bids_base_directory': 'sub-201/ses-01/beh/',
    'ppg_raw': array([-107070.39, -106860.4 , ..., -111120.33, -111090.33]),
    'sfreq': 1000,
    'ppg_norm': array([-0.61267495, -0.60951383, ..., -0.67364141, -0.6731898])
    },
    ...}

2b. PPG filtering#

If the variable ppg_filter is set to True in the optional pipeline steps (see settings above - defaults to True), this part of the code will:

Apply filtering to the PPG signal of each participant using NeuroKit2's nk.ppg_clean() function. The filtering method defaults to elgendi, as recommended for general-purpose preprocessing.
Store the filtered signal for each participant in ppg_dict() under the ppg_filt key.

If ppg_filter is set to False, subsequent steps will rely on the raw or normalized signal (ppg_norm) instead.

Example of the updated ppg_dict for a given participant after running this filtering step:

{'sub-201': {
    'bids_base_filename': 'sub-201_ses-01_task-BBSIG',
    'bids_base_directory': 'sub-201/ses-01/beh/',
    'ppg_raw': array([-107070.39, -106860.4 , ..., -111120.33, -111090.33]),
    'sfreq': 1000,
    'ppg_norm': array([-0.61267495, -0.60951383, ..., -0.67364141, -0.6731898]),
    'ppg_filt': array([ 0.02183344,  0.02273415,  ..., -0.00014027, -0.00011864])
    },
    ...}

For reference, this is how the normalized PPG signal before filtering (blue; corresponding to ppg_norm) compares to the cleaned PPG signal after filtering (orange; corresponding to ppg_filt) using the ‘elgendi’ method:

PPG filtered vs. raw

2c. PPG clipping artifact detection and interpolation#

If the variable clip_artifacts_correct is set to True in the optional pipeline steps (see settings above), this part of the code will:

Detect clipping artifacts at a minimum and/or maximum threshold using Systole's find_clipping() function.
Interpolate over the detected artifacts with interpolate_clipping, using cubic interpolation by default.
Save the corrected PPG signal under the ppg_clipping_clean key in ppg_dict. If clipping artifacts are detected and interpolated for a given participant, this information will be stored under the key ppg_clipping_interpolation as True.

Unsure whether your PPG signal contains clipping artifacts?

If your are unsure whether your PPG signal contains clipping artifacts, we recommend setting clip_artifacts_correct to True and running this section, as it will automatically detect participants that have clipping artifacts and correct them.

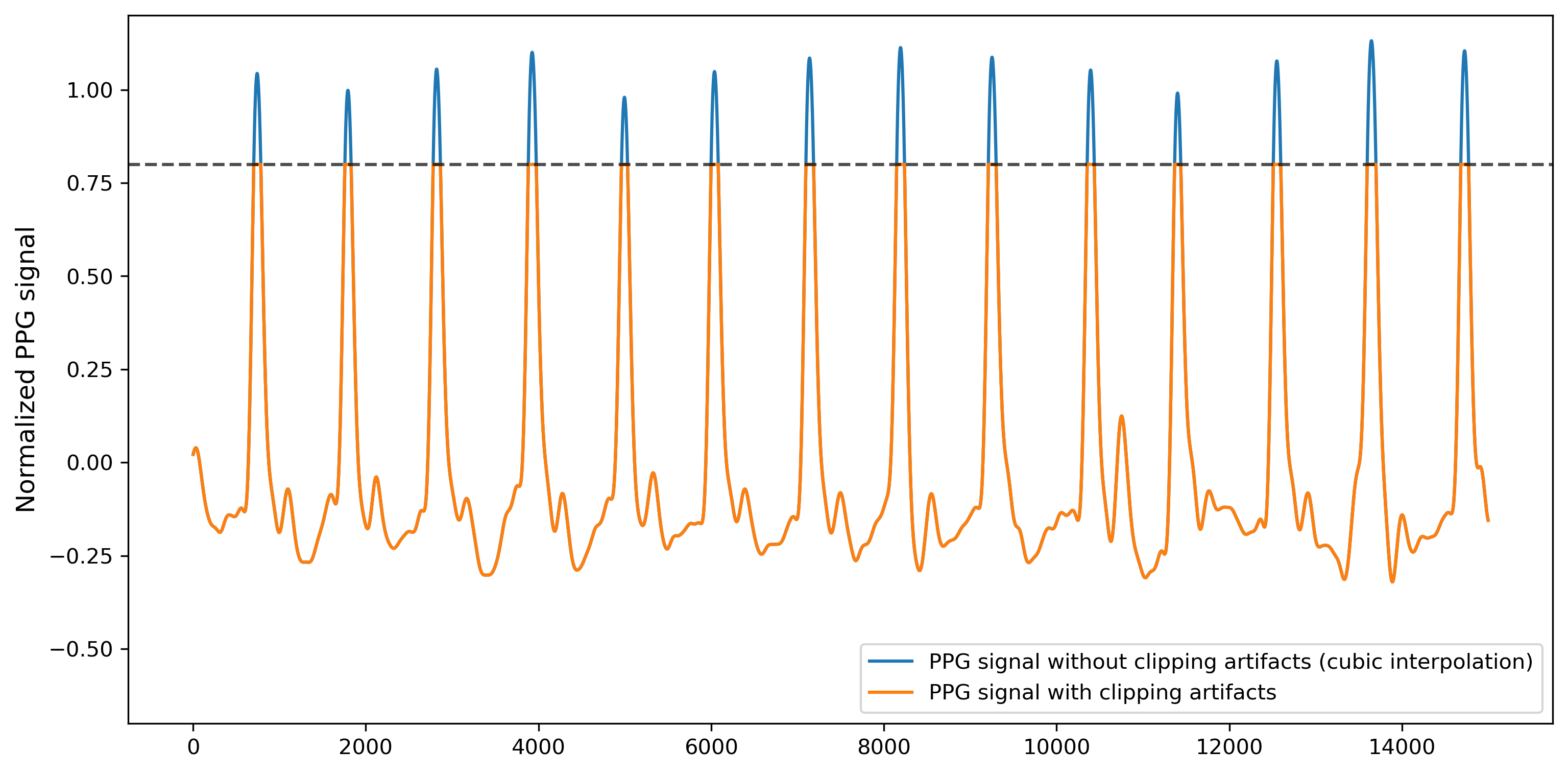

For comparison, below is an example what a PPG signal could look like with an artificial clipping artifact at a maximum threshold of 0.8, before (orange) and after (blue; corresponding to ppg_clipping_clean) applying the clipping artifact interpolation using Systole’s interpolate_clipping() with cubic interpolation. In this case, the key ppg_clipping_interpolation will be reported as True.

PPG clipping cleaned

If clip_artifacts_correct is set to False, subsequent steps will rely on the raw, normalized (ppg_norm) or filtered (ppg_filt) signal instead. Here is an example of how the updated ppg_dict for a given participant would look like after running the clipping artifact correction, including whether the correction was performed on a given participant:

{'sub-201': {
    'bids_base_filename': 'sub-201_ses-01_task-BBSIG',
    'bids_base_directory': 'sub-201/ses-01/beh/',
    'ppg_raw': array([-107070.39, -106860.4 , ..., -111120.33, -111090.33]),
    'sfreq': 1000,
    'ppg_norm': array([-0.61267495, -0.60951383, ..., -0.67364141, -0.6731898]),
    'ppg_filt': array([ 0.02183344,  0.02273415,  ..., -0.00014027, -0.00011864]),
    'ppg_clipping_clean': array([ 0.02183344,  0.02273415, ..., -0.00014027, -0.00011864]),
    'ppg_clipping_corrected': 'False'
    },
    ...}

3. PPG peak detection#

This section performs systolic peak detection on the provided PPG signal and optionally applies automated correction, based on the chosen method. In detail, this section:

Defines a custom function detect_ppg_peaks() for detecting systolic peaks using NeuroKit2's ppg_peaks() with the default method 'elgendi' (for best results, this method expects the filtered PPG signal, so make sure that ppg_filter is set to True to execute Sect. 2b). Alternatively, PPG peaks detection can be implemented using the method 'bishop' (suitable only for short time-windows and low sampling frequency e.g., 5 seconds and 100 Hz).
Store the indices of the uncorrected systolic peaks in the 'ppg_peaks_info' dictionary as 'PPG_Peaks_Uncorrected'.
Optionally, implement two complementary methods for artifact correction:
- If correct_artifacts_nk is set to True, it enables artifact correction by Systole or by the automated artifact correction built in to NeuroKit2’s ppg_peaks() function.
- If correct_artifacts_sys is set to True, it enables artifact correction with Systole's correct_peaks(), which is based on the detection of RR-interval abnormalities. The detection-correction process will be repeated as many times as specified by the iterations variable (see settings above; defaults to 1). The indices of the uncorrected artifact types, as well as the number of extra and missed peaks corrected with this method, will be saved in the 'info' dictionary.

Example usage of the custom detect_ppg_peaks() function:

detect_ppg_peaks(signal=ppg_signal,
                 sfreq=sfreq, method='elgendi',
                 correct_artifacts_nk=correct_artifacts_nk,    # default = True
                 correct_artifacts_sys=correct_artifacts_sys,  # default = True
                 n_iterations=iterations) # default = 1

This function returns a dictionary with:

ppg_peaks_idx: indices of detected PPG systolic peaks.
ppg_peaks_bool: boolean array indicating the presence of PPG systolic peaks, with same length as original PPG recording.
ppg_peaks_info: dictionary containing metadata, including:
- The peak detection method used (method_peaks).
- The automated artifact correction method(s) used (peaks_correction_neurokit and/or peaks_correction_systole).
- The indices of artifacts (e.g., missed, extra, ectopic beats) detected before correction ({artifacttype}_idx_uncorr).
- The number of missed/extra beats corrected, if applicable (info_correction_systole).

This dictionary containing

the detected PPG peaks and their metadata is then appended to ppg_dict, as shown in the example below: highlight">

{'sub-01': {'ppg_raw': array([ -107070.39, -106860.4 , ..., -111120.33, -111090.33]), 'sfreq': 1000, 'ppg_norm': array([ -0.61267495, -0.60951383, ..., -0.67364141, -0.6731898]), 'ppg_filt': array([ 0.02183344,  0.02273415,  ..., -0.00014027, -0.00011864]), 'ppg_clipping_clean': array([ 0.02183344,  0.02273415,  ..., -0.00014027, -0.00011864]), 'ppg_clipping_corrected': 'False', 'ppg_peaks_bool': array([ 0, 0, ..., 0, 0]), 'ppg_peaks_idx': array([ 741, 1793, ..., 917909, 918931], dtype=int64), 'ppg_peaks_info': {'method_peaks': 'elgendi', 'peaks_correction_neurokit': 'True', 'peaks_correction_systole': 'True', 'PPG_Peaks_Uncorrected': array([ 741, 1793, ..., 917909, 918931]), 'ectopic_idx_uncorr': array([ 94, ..., 886], dtype=int64), 'long_idx_uncorr': array([ 174], dtype=int64), 'short_idx_uncorr': array([ 91, 309], dtype=int64), 'extra_idx_uncorr': array([ 90, ..., 848], dtype=int64), 'missed_idx_uncorr': array([], dtype=int64), 'info_correction_systole': {'extra': 0, 'missed': 0}} }, ... class="p">}
4. (Optional) interactive visualization#
If interactive_ppg_plot is set to True, this section provides two complementary types of interactive visualization of the PPG signal, using Systole's plot_raw() and plot_subspaces() functions. If plot_within_notebook is set to True, the interactive plots for all participants will be rendered within the notebook using Bokeh as the backend, otherwise each plot will be opened as separate HTML file in the browser (note that this is the recommended option when processing many participants at a time). In detail:

4a. Interactive plot of PPG signal and systolic peaks: display an interactive plots of PPG signal over time with systolic peaks and instantaneous heart rate using Systole's plot_raw().
4b. Interactive plot of subspaces: display an interactive visualization of PPG subspaces plots, including short/long intervals and ectopic beats using Systole's plot_subspaces(), based on the artifact detection method described in Lipponen & Tarvainen (2019).

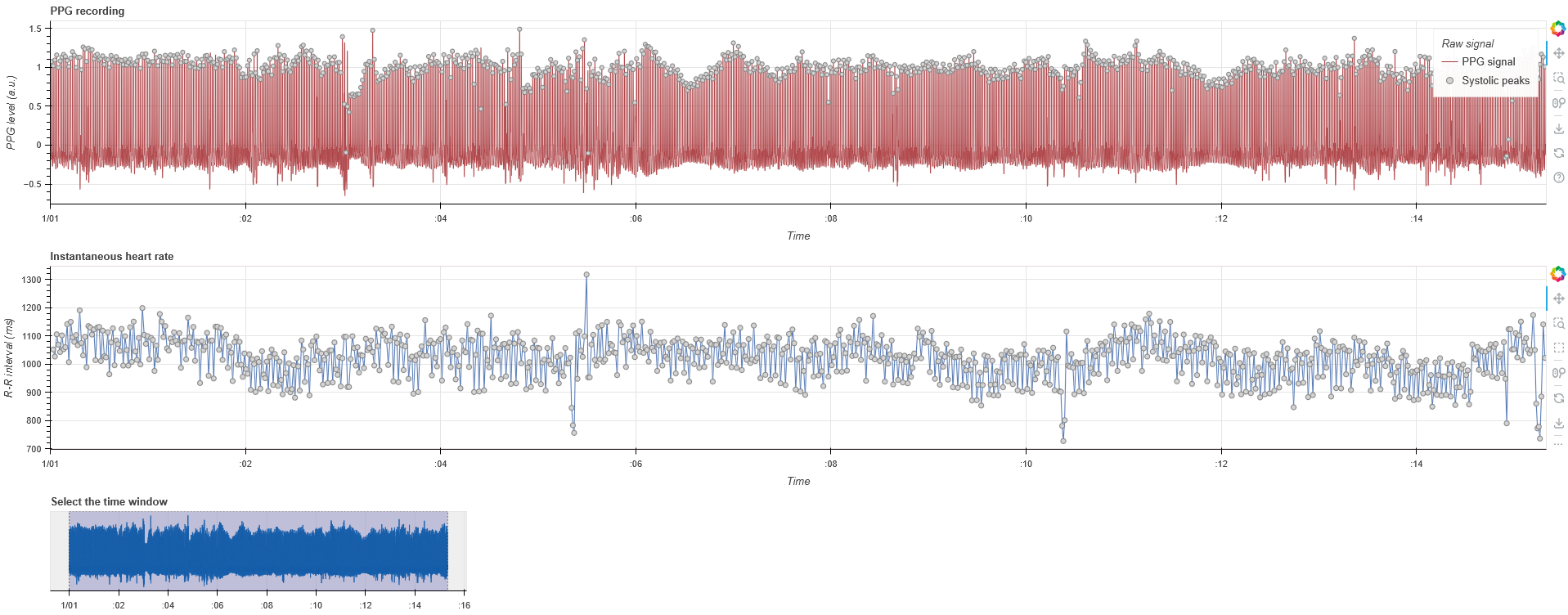

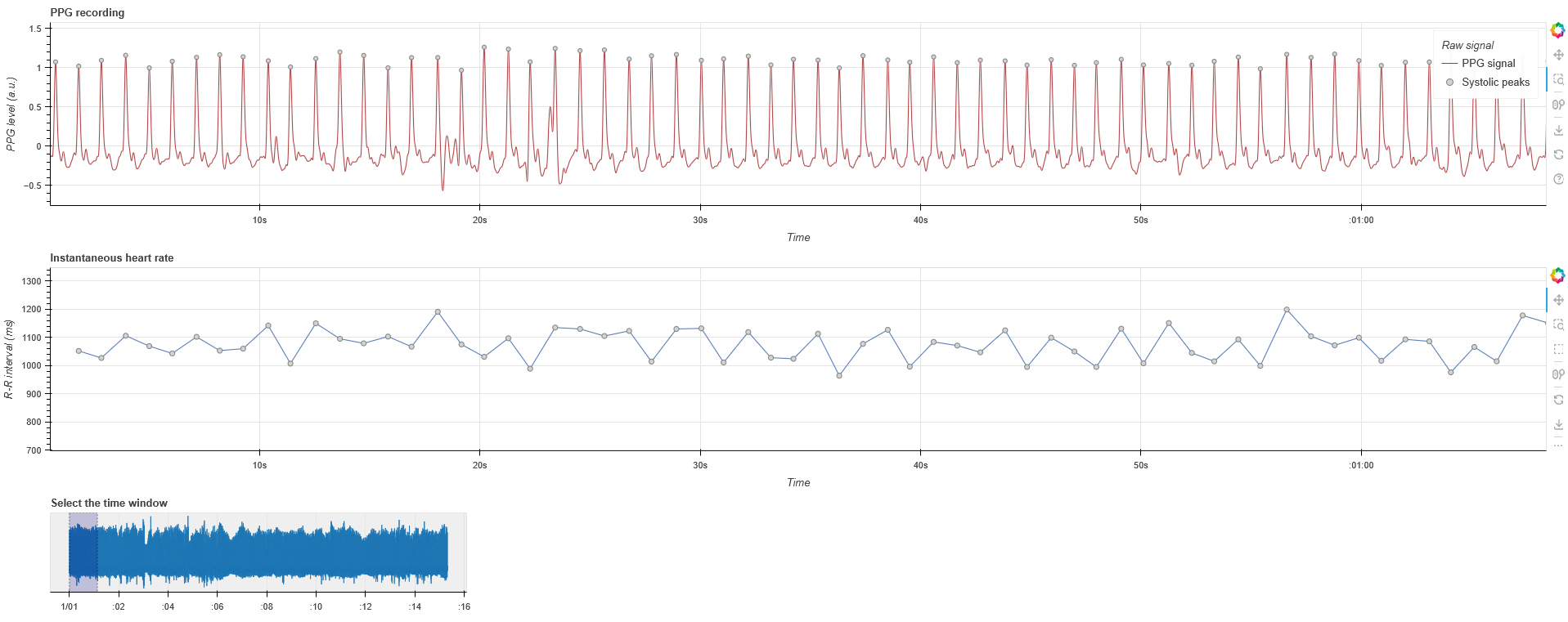

4a. Interactive plot of PPG signal and systolic peaks#
The interactive visualization of the PPG signal with systolic peaks and/or the instantaneous heart rate is provided by Systole’s plot_raw() function.
Running this section will either plot within the notebook or open an HTML file that looks like this:

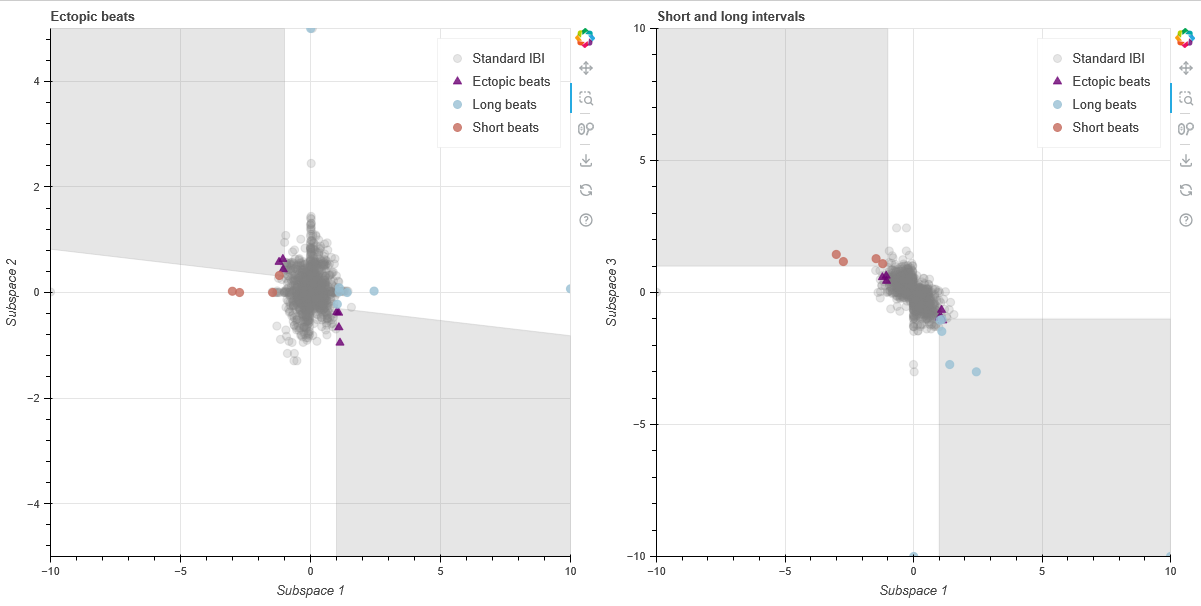

4b. Interactive plot of subspaces#
Similarly, if the interactive visualization is enabled, subspace plots are created using Systole’s plot_subspaces() to allow the identification of artifacts, including short/long intervals and ectopic beats, based on the artifact detection method described in Lipponen & Tarvainen (2019).
Running this section will either plot within the notebook or open an HTML file that looks like this:

5. Manual PPG peaks correction#
5a. Manual PPG peaks correction: interactive plot#
If enabled via manual_correct, this section triggers the interactive manual correction of PPG systolic peak locations and identification of noisy segments in the PPG signal using Systole's Editor. Both the raw PPG signal and the instantaneous heart rate are plotted to check for artifacts (e.g., long/short beats, ectopic beats). This interactive plot features a "Correction" mode for deleting peaks or adding them at the local maxima within selected segments, and a "Rejection" mode for marking selected segments as 'bad'.

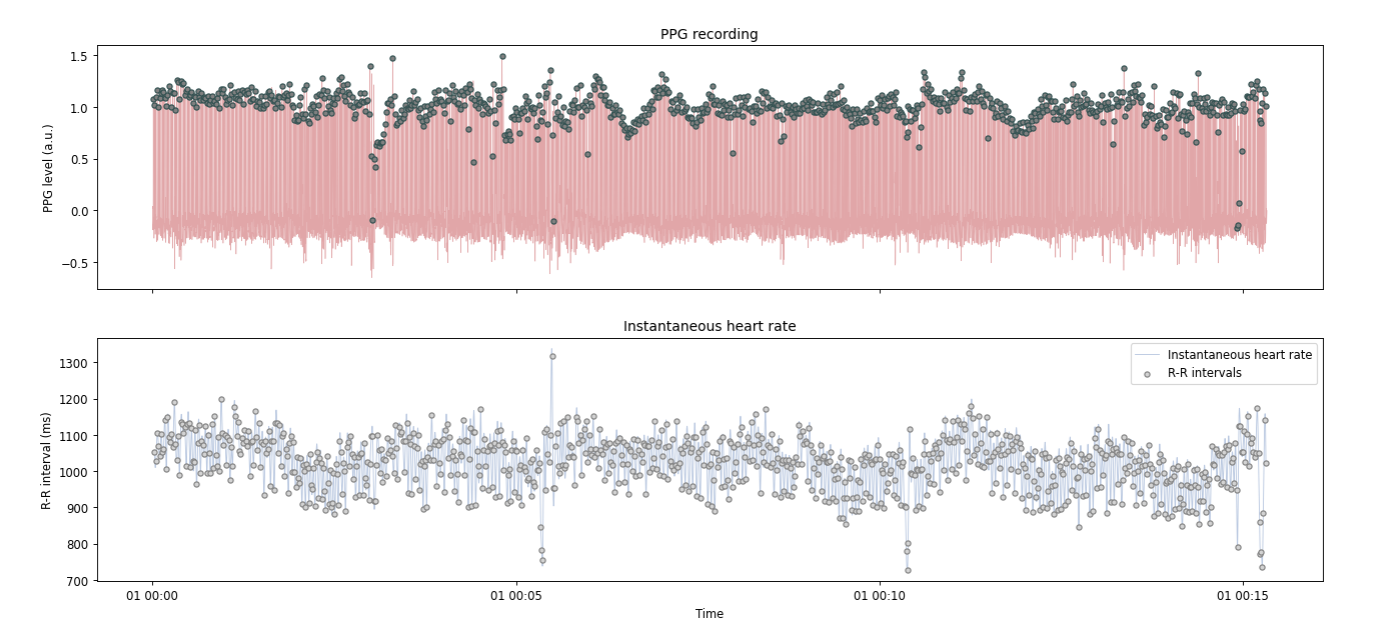

This is what the UI for manual peak correction looks like when importing your clean PPG signal and systolic peak locations:

You can use the tools on the left side to zoom into the signal, scroll along the time axis, or go the previous or next visualization step.

With Correction mode selected:
Click and drag the left mouse button to select a segment where all the peaks should be removed.
Click and drag the right mouse button to select a segment where a peak will be added at the local maximum.


With Rejection mode selected:
Click and drag the right mouse button to select a segment that should be marked as a bad segment. This will be saved as a pair of indices indicating the onset and offset of the bad segment.



You can read more about how manual correction works in the Systole official documentation: Working with BIDS folders - Using the Editor to inspect raw signal.
It is recommended to perform manual correction one participant at a time, by specifying the desired participant ID in the list participants_manual = []. Once you are done with manual correction for one participant and have saved the corresponding JSON file by running Sect. 5b, you can change the participant ID and re-run the entire manual correction section again. Note that, after manually correcting a few participants, the interactive plot might become laggy or freeze, so you might want to run the entire preprocessing pipeline only on a handful of participants at a time.
if manual_correct:
    participants_manual = ['sub-201'] # change with desired participant ID

    print(f'Manual correction of PPG peaks will be presented for participant: {participants_manual}')


Bug: recurrent TypeError using Systole's Editor
Just ignore the TypeError: Figure.set_tight_layout() missing 1 required positional argument: 'tight' error that will be printed every manual correction or bad segment annotation you perform using Systole's Editor.

5b. Manual PPG peaks correction: data saving#
Once done with manual correction in the UI, save the results by running the code block in this section. The corrected PPG peak locations and bad segment indices for the participant specified in participants_manual are saved to a JSON file (_manual-corrected.json) in the /derivatives/ppg-preproc/sub-<label>/ folder for further processing and analysis. The manual correction process can be repeated for further participants by each time indicating a new participant ID and running the entire section again.

Warning
Make sure that you run the editor.save() section (below) only after completing your manual PPG peak correction for the given participant. This will save the output _manual-corrected.json file with the information about the new PPG peak locations and bad segments idx pairs.
# Execute only when manual peak correction is done
if manual_correct:
    editor.save()



Bug: Is your sampling frequency different from 1000 Hz? Incorrect Editor timescale
Caution when using Systole’s Editor for manual correction with sampling rates other than 1000 Hz! Despite specifying the sfreq in the Editor’s arguments, the function appears to be using a default sampling frequency of 1000 Hz to calculate the time window of the interactive visualization. As a result, the Editor might display your ECG signal in an incorrect time scale, shorter or longer than its actual duration. Despite this bug in the visualization, the manually corrected R-peak and bad segment indices are saved correctly in the output _systole-corrected.json file.

For example, if your sfreq is 500 Hz and your original ECG signal is 10 min long, the UI will plot the signal with a default sampling frequency of 1000 Hz (i.e. as if 1000 samples were included in 1 sec of recording). This squeezes the timescale of the ECG signal into half its length (i.e., 5 min) and plots equally incorrect RR interval durations for the instantaneous HR, e.g., each heart beat lasting 300 or 400 ms.
A potential temporary solution could be to resample your data to 1000 Hz.


6. Data output#

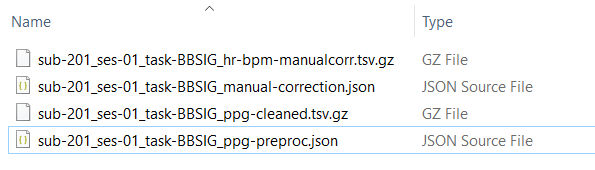

This section exports the PPG preprocessing output files in BIDS-compliant format for each subject in derivatives/ppg-preproc/sub-<label>/<datatype>/.
6a. (Optional) Export raw and clean PPG data#
A custom function, save_ppg_cleaned(), saves the BIDS-compliant _ppg-cleaned.tsv.gz file with two columns: ppg_raw (the original PPG data) and ppg_cleaned (the cleaned PPG signal, created by the optional steps in Sect. 2). This ensures easy access for later stages of analysis and enhances reproducibility.
If PPG cleaning was performed at the beginning (ppg_normalize, ppg_filter and/or clip_artifacts_correct), this section saves the _ppg-cleaned.tsv.gz file with two columns: the original PPG recording (ppg_raw) and the cleaned PPG signal with the applied cleaning options (ppg_cleaned).
This is how the _ppg-cleaned.tsv.gz TSV file might look (after decompression):
ppg_raw        ppg_cleaned
-107070.39     0.021833
-106860.40     0.022734
-106670.40     0.023627
-106460.40     0.024509
-106330.41     0.025381

6b. Export main PPG preprocessing features#
A custom function, save_ppg_preproc(), saves the _ppg-preproc.json file containing the following information:

ppg_peaks contains the following data: PPG_Peaks_Uncorr for uncorrected PPG peak indices; PPG_Peaks_AutoCorr for auto-corrected PPG peak indices, if either NeuroKit2's or Systole's artifact correction were used; PPG_Peaks_ManualCorr for manually corrected PPG peak indices using Systole's Editor.
rr_s contains the RR interval time series (in seconds) created using Systole's input_conversion(output_type='rr_s'), based on the uncorrected, auto-corrected and/or manually corrected PPG systolic peak indices (if present).
bad_segments contains index pairs indicating the onsets and offsets of PPG signal segments marked as "bad" using Systole's Editor.
info contains metadata about the PPG peak detection procedure, including the methods chosen for peak detection and artifact correction, the indices of uncorrected artifacts and the number of extra/missed peaks automatedly corrected.

This is the crucial final step of our BBBSIG PPG preprocessing pipeline. It stores all the features that have been calculated so far, including: PPG peak locations (uncorrected, automatedly corrected, and/or manually corrected if present); RR interval time series (based on uncorrected, automatedly corrected and/or manually corrected peaks if present); bad segments indices; metadata about the chosen PPG peak detection and correction methods. These are all saved as lists of values (e.g., indices for ppg_peaks or seconds for rr_s) under the corresponding keys.
Below is an example of how different sections of the _ppg-preproc.json file could look:
{
    "ppg_peaks": {
        "PPG_Peaks_Uncorr": [ 741, 1793, 2820, ...],
        "PPG_Peaks_AutoCorr": [ 741, 1793, 2820, ...],
        "PPG_Peaks_ManualCorr": [ 741, 1793, 2820, ...]
    },
    "rr_s": {
        "RR_s_Uncorr": [ 1.052, 1.027, 1.106, ...],
        "RR_s_AutoCorr": [ 1.052, 1.027, 1.106, ...],
        "RR_s_ManualCorr": [ 1.052, 1.027, 1.106, ...]
    },
    "bad_segments": [ 278792, 284127, 327740, 331397, 517534, 522042],
    "info": {
        "method_peaks": "elgendi",
        "peaks_correction_neurokit": "True",
        "peaks_correction_systole": "True",
        "ectopic_idx_uncorr": [ 94, 175, ..., 886],
        "long_idx_uncorr": [ 174 ],
        "short_idx_uncorr": [ 91, 309],
        "extra_idx_uncorr": [ 90, 157, ..., 848],
        "missed_idx_uncorr": [],
        "info_correction": {
            "extra": 0,
            "missed": 0
        }
    }
}

6c. (Optional) Export interpolated HR (in bpm)#
A custom function, save_hr_interpol(), saves the interpolated heart rate (HR) values in BPM from the RR interval time series with the selected correction type (i.e., manualcorr > autocorr > uncorr) to a new file ending in _hr-bpm-{correction_type}.tsv.gz.  Please note that interpolated HR values before the first RR interval and after the last RR interval will be filled with NaN values.

Bug: Incorrect HR interpolation with Systole’s heart_rate() with sampling frequences other than 1000 Hz
We have identified a bug in Systole's heart_rate() function whenever the sfreq argument is set to any value other than the default 1000 Hz. The interpolated HR values in BPM are incorrectly scaled by the value of sfreq, leading to inaccurate results. For example, for an RR interval of 992 ms, which should correspond to 60.48 bpm, calling heart_rate(sfreq=500) returns an incorrectly interpolated HR of 30.24 bpm, exactly half the expected value. As a temporary fix, we keep the argument sfreq to its default (1000 Hz) when calling this function within the custom save_hr_interpol() block. This ensures that interpolated HR values remain correct regardless of the original ECG signal's sampling frequency.
We are waiting for an official fix from the maintainers of Systole. You can track the progress or read more about this bug here: opened issue on GitHub.

This is what the _hr-bpm-{correction_type}.tsv.gz file might look (after decompression) - note that the values shown do not include the NaN values before the first RR interval (which lasted 1.052 s):
        hr_bpm_manualcorr
1052          57.034221
1053          57.042750
1054          57.051261
1055          57.059753
1056          57.068228

Good job, your PPG preprocessing is done! 🥳#
If you enabled all optional steps, these are the files which will now be included in the derivatives/ppg-preproc/sub-<label>/ directory:

_ppg-preproc.json: stores the main PPG preprocessing features, including PPG peak indices (uncorrected, auto-corrected, and manually corrected), RR time-series derived from these peak indices, and metadata about artifacts, bad segments and correction.
_ppg-cleaned.tsv.gz: if you enabled the parameter ppg_filter in Sect. 2, stores the raw and cleaned PPG signal.
_manual-corrected.json: if you performed manual PPG peak correction and saved its output, stores the Systole's Editor output with manually corrected PPG peaks and bad segment indices. See Sect. 5
_hr-bpm-{correction_type}.tsv.gz: if you enabled the parameter hr_interpol in Sect. 6, stores the interpolated HR values in BPM.






What does the BIDS directory look like after running the ECG preprocessing pipeline?
Let's come back to the example BIDS directory from the beginning, where we wanted to preprocess the physio data for two given participants, sub-201 and sub-202, with one session (ses-01) each and datatype beh. After running this PPG preprocessing pipeline, the BIDS structure should now include a derivatives/ppg-preproc folder with sub-folders for each participant, session (optional), and datatype. Within this last folder, the four main output files should be stored.
└─ YourBIDSFolder/
    ├─ derivatives/
    │   └─ ppg-preproc/
    │       ├─ sub-201/
    │       │   └─ ses-01/
    │       │       └─ beh/
    │       │           ├─ `sub-201_ses-01_task-BBSIG_hr-bpm-manualcorr.tsv.gz`  # optional
    │       │           ├─ `sub-201_ses-01_task-BBSIG_manual-corrected.json`     # optional
    │       │           ├─ `sub-201_ses-01_task-BBSIG_ppg-cleaned.tsv.gz`        # optional
    │       │           └─ `sub-201_ses-01_task-BBSIG_ppg-preproc.json`          # main output
    │       ├─ sub-202/
    │       └─ ...
    ├─ sub-201/
    │   └─ ses-01/
    │       └─ beh/
    │           ├─ `sub-201_ses-01_task-BBSIG_physio.json`
    │           └─ `sub-201_ses-01_task-BBSIG_physio.tsv.gz`
    ├─ sub-202/
    └─ ...

PPG preprocessing: ppg_preproc.ipynb#

Pipeline structure#

Settings: optional pipeline steps#

1. Data import and conversion#

2. (Optional) PPG normalization, filtering & clipping artifact correction#

2a. PPG normalization#

2b. PPG filtering#

2c. PPG clipping artifact detection and interpolation#

3. PPG peak detection#

4. (Optional) interactive visualization#

4a. Interactive plot of PPG signal and systolic peaks#

4b. Interactive plot of subspaces#

5. Manual PPG peaks correction#

5a. Manual PPG peaks correction: interactive plot#

5b. Manual PPG peaks correction: data saving#

6. Data output#

6a. (Optional) Export raw and clean PPG data#

6b. Export main PPG preprocessing features#

6c. (Optional) Export interpolated HR (in bpm)#

Good job, your PPG preprocessing is done! 🥳#

PPG preprocessing: `ppg_preproc.ipynb`#
